Capture
Walk the environment while LiDAR, visual, and motion data are recorded.
High-density 360° handheld SLAM 3D scanner
Radix
Dense 360° point-cloud capture for complex and extended environments.
Radix uses a HESAI XT16/32 laser unit to support a high measurement rate and extended capture range while retaining a portable field workflow.
Best fit
Where Radix is most relevant.

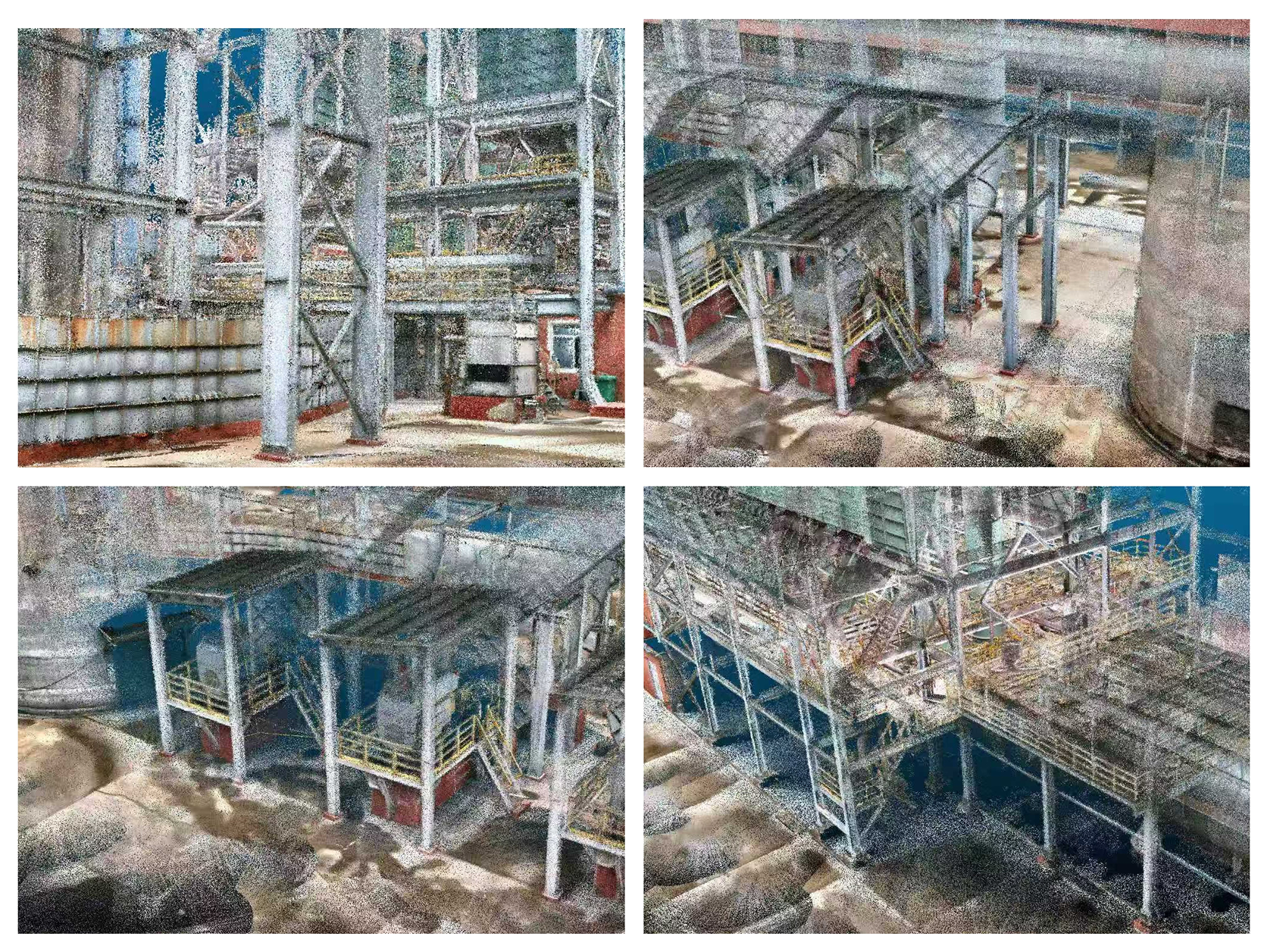

✓Complex industrial and infrastructure environments
✓Longer-range 360° mapping
✓Projects prioritizing dense spatial capture
360° × 31°Field of view
0.05-120 mRange
640,000 pts/sMeasurement rate
1.8 kgWeight including battery
Specifications describe the device; they do not guarantee a project outcome. Evaluate the full workflow and expected environment.
Workflow
Capture → Preview → Process → Measure → Deliver
Preview
Use the field interface to review point-cloud coverage and task status.
Process
Run the supported post-processing workflow.
Deliver
Export the required spatial-data and model formats.
Practical relevance
Designed for evaluators who need comprehensive 360° coverage, longer range, and a high point rate. Point rate should be assessed alongside environment, workflow, and accuracy requirements.
Selection should consider range, field of view, point rate, weight, battery duration, reflectivity, environment, and downstream output requirements.
Verified specifications
Radix technical specifications
| Laser unit | XT16/32 HESAI |
|---|---|
| Repeatability | 1 cm |
| Angular accuracy | 0.18° |
| Field of view | 360° × 31° |
| Camera resolution | 12 MP |
| Laser class | 905 nm / Class 1 |
| Absolute accuracy | 3 cm |
| Range | 0.05-120 m |
| Measurement rate | 640,000 points/second |
| Dimensions | 138 × 100 × 335 mm |
| Weight | 1.8 kg including battery |
| Operating temperature | -20°C to 50°C |
| Power | 30 W |
| Storage | CFexpress 128 GB standard; expandable to 1 TB |
| Wireless | Wi-Fi |
| Protection rating | IP54 |
| Battery life | 1.0 hour with 30 Wh battery |
Frequently asked questions
What is this model best suited for?
Designed for evaluators who need comprehensive 360° coverage, longer range, and a high point rate. Point rate should be assessed alongside environment, workflow, and accuracy requirements.
What output formats are supported?
Handheld output formats include LAS, LAZ, PLY, PCD, E57, CSV, TXT, BAG, DB, DXF, OBJ, and PLY-based 3D Gaussian outputs, depending on the workflow.
Does the listed range apply in every environment?
No. Range depends on reflectivity, atmosphere, angle, surface, and capture conditions. Any reflectivity condition shown in the specification must remain attached to the value.
Is 0.5 cm the absolute accuracy?
No. The brochure lists 3 cm product-level absolute accuracy and separately references a 0.5 cm relative-accuracy benchmark for supported workflows and conditions.
