Capture
Walk the environment while LiDAR, visual, and motion data are recorded.

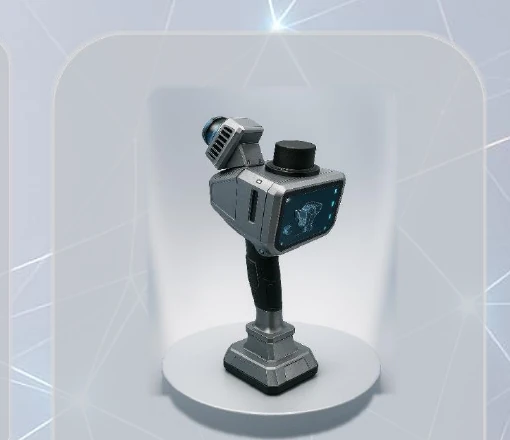

Balanced handheld SLAM 3D scanner
Pentra
Portable 360° spatial capture for everyday surveying and documentation.
Pentra combines broad 360° LiDAR coverage, a 12 MP camera, field preview, and removable high-speed storage in a 1.2 kg handheld system.
Best fit
Where Pentra is most relevant.
✓Indoor and outdoor existing-condition capture
✓Building and construction documentation
✓Engineering surveys and digital-twin data collection
360° × 59°Field of view
40 m / 70 mRange at 10% / 80% reflectivity
200,000 pts/sMeasurement rate
2.0 hoursBattery life with 30 Wh battery
Specifications describe the device; they do not guarantee a project outcome. Evaluate the full workflow and expected environment.
Workflow
Capture → Preview → Process → Measure → Deliver
Preview
Use the field interface to review point-cloud coverage and task status.
Process
Run the supported post-processing workflow.
Deliver
Export the required spatial-data and model formats.
Practical relevance
A balanced portable option when broad coverage, manageable weight, and practical indoor/outdoor range are central to the workflow.
Selection should consider range, field of view, point rate, weight, battery duration, reflectivity, environment, and downstream output requirements.
Verified specifications
Pentra technical specifications
| Laser unit | Mid-360 LIVOX |
|---|---|
| Repeatability | 2 cm |
| Angular accuracy | 0.015° |
| Field of view | 360° × 59° |
| Camera resolution | 12 MP |
| Laser class | 905 nm / Class 1 |
| Absolute accuracy | 3 cm |
| Range | 40 m at 10% reflectivity; 70 m at 80% reflectivity |
| Measurement rate | 200,000 points/second |
| Dimensions | 138 × 85 × 285 mm |
| Weight | 1.2 kg including battery |
| Operating temperature | -20°C to 50°C |
| Power | 15 W |
| Storage | CFexpress 128 GB standard; expandable to 1 TB |
| Wireless | Wi-Fi |
| Protection rating | IP54 |
| Battery life | 2.0 hours with 30 Wh battery |
Frequently asked questions
What is this model best suited for?
A balanced portable option when broad coverage, manageable weight, and practical indoor/outdoor range are central to the workflow.
What output formats are supported?
Handheld output formats include LAS, LAZ, PLY, PCD, E57, CSV, TXT, BAG, DB, DXF, OBJ, and PLY-based 3D Gaussian outputs, depending on the workflow.
Does the listed range apply in every environment?
No. Range depends on reflectivity, atmosphere, angle, surface, and capture conditions. Any reflectivity condition shown in the specification must remain attached to the value.
Is 0.5 cm the absolute accuracy?
No. The brochure lists 3 cm product-level absolute accuracy and separately references a 0.5 cm relative-accuracy benchmark for supported workflows and conditions.
