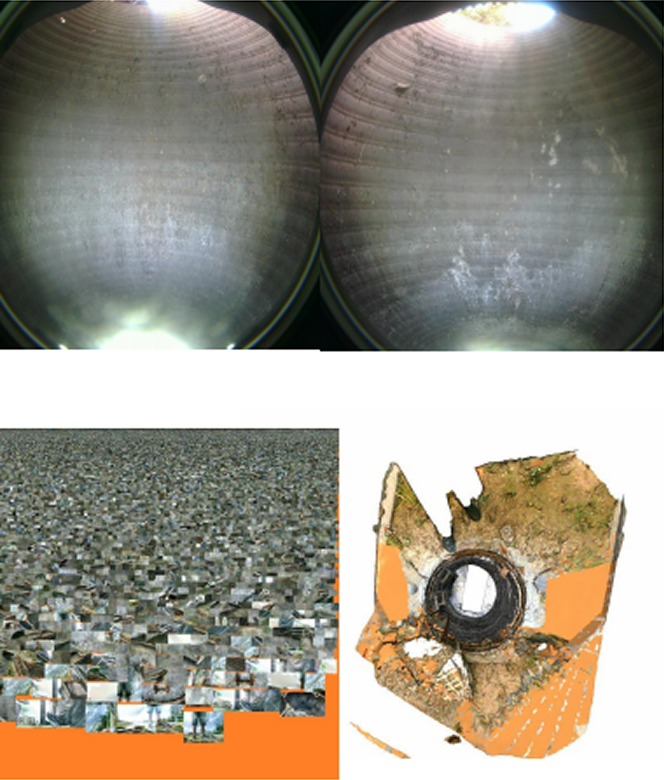

HD Video
Panoramic imagery and video provide visual records of shaft walls, pipelines, and base structures for later review.
Portable manhole 3D scanning and modeling system

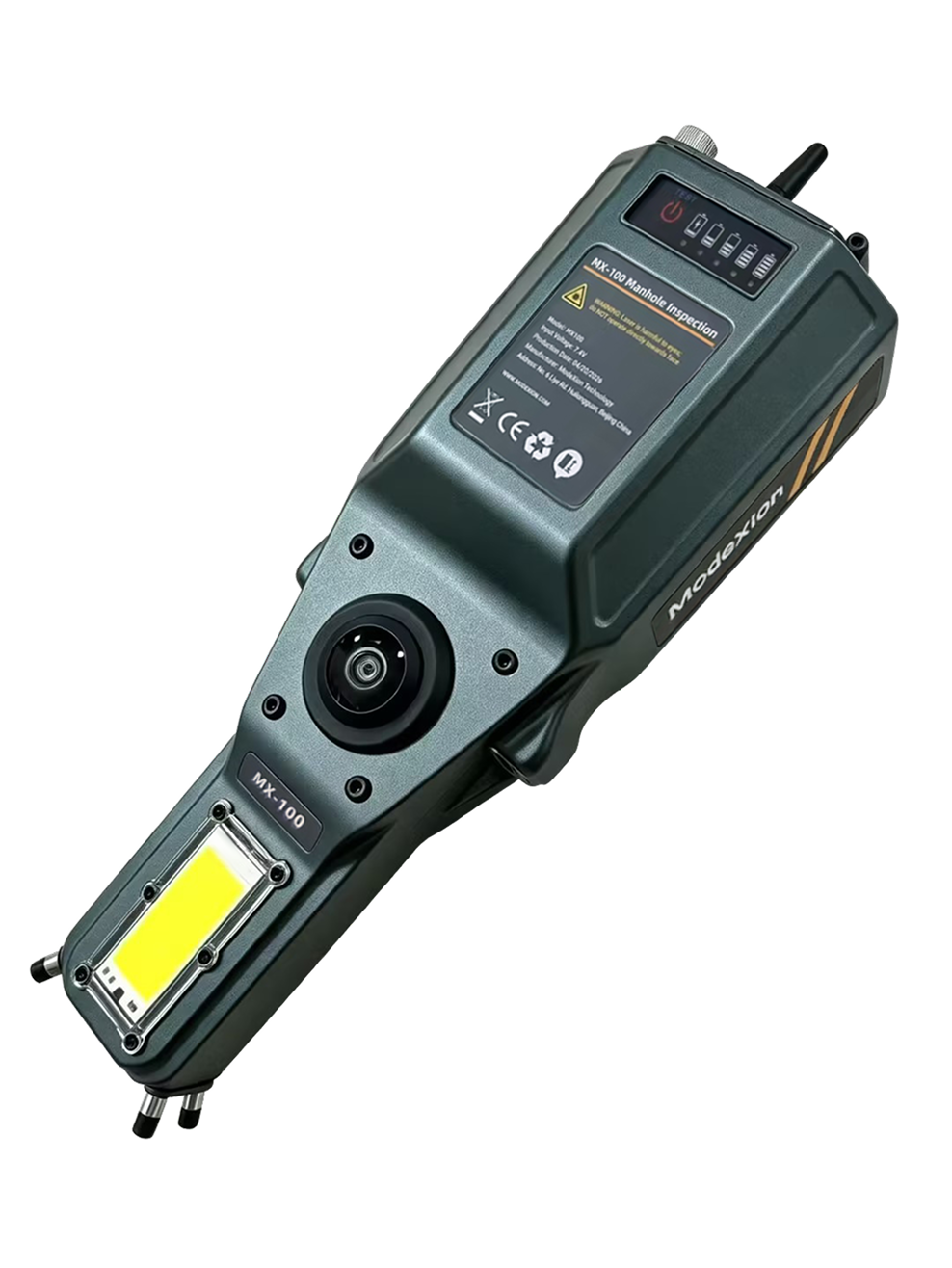

MX-100 Manhole Inspection System
Capture manhole interiors from ground level, reconstruct the space in 3D, measure features, review findings, and create documented inspection outputs.
The inspection challenge
Traditional visual checks can leave incomplete, difficult-to-review records.

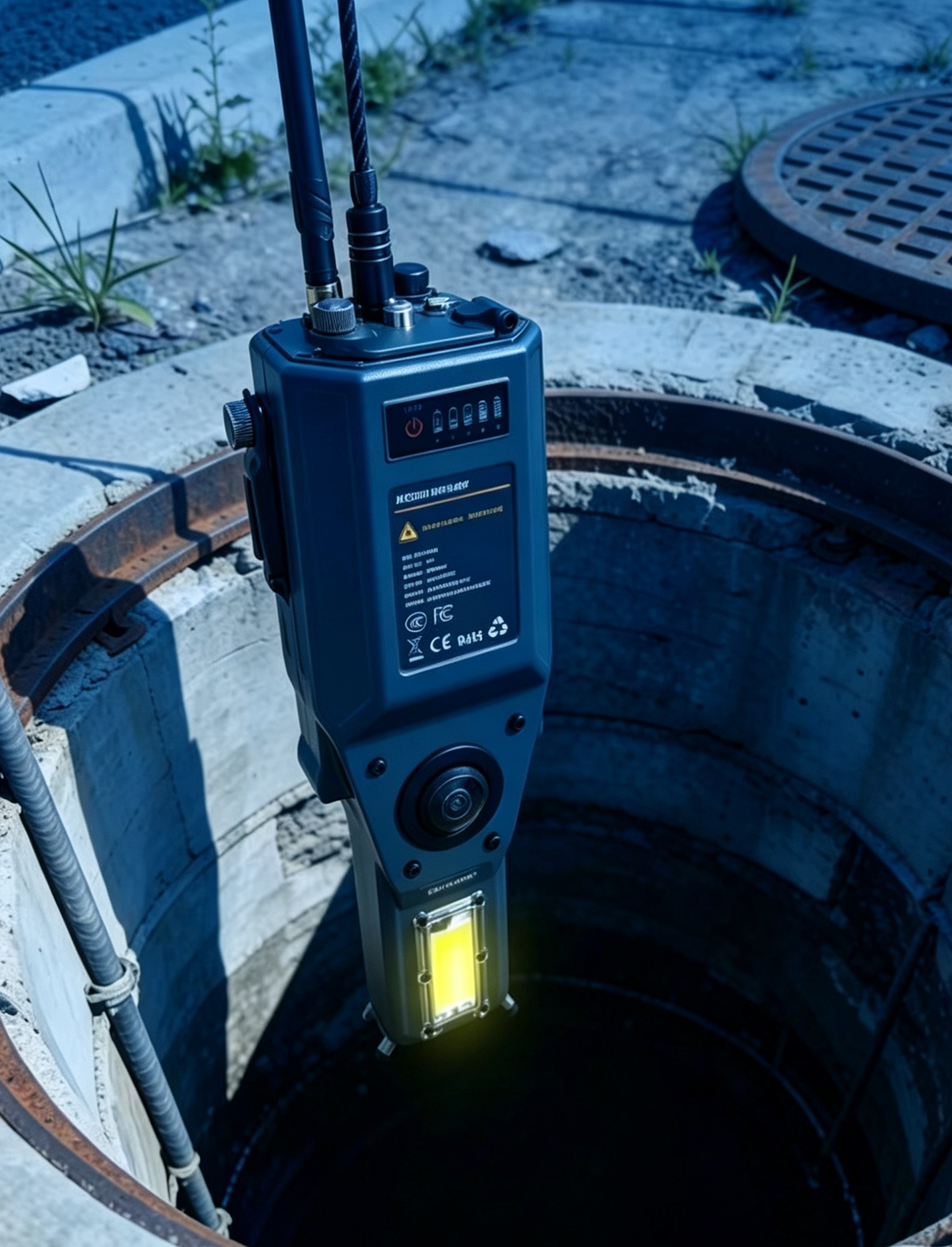

The MX-100 is designed to support ground-level data capture and reduce the need for routine entry. It does not replace site safety procedures or professional judgment.
A field-to-report inspection workflow.
01Inspect
02Visualize
03Reconstruct
04Measure
05Review
06Report
07Act
Outputs
Build an inspection record that can be reviewed after the field visit.
Review the separate visual, spatial, and reporting outputs produced by the MX-100 workflow.

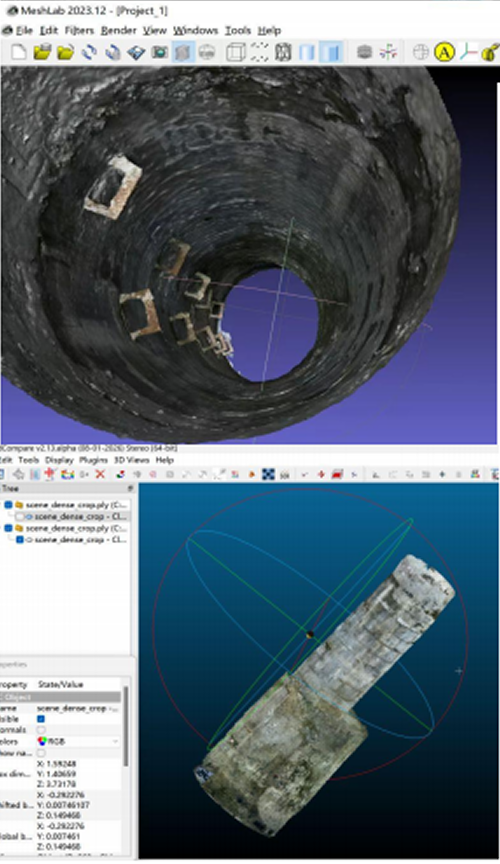

3D Mesh Model
A reconstructed mesh represents the manhole interior for spatial review and documentation.

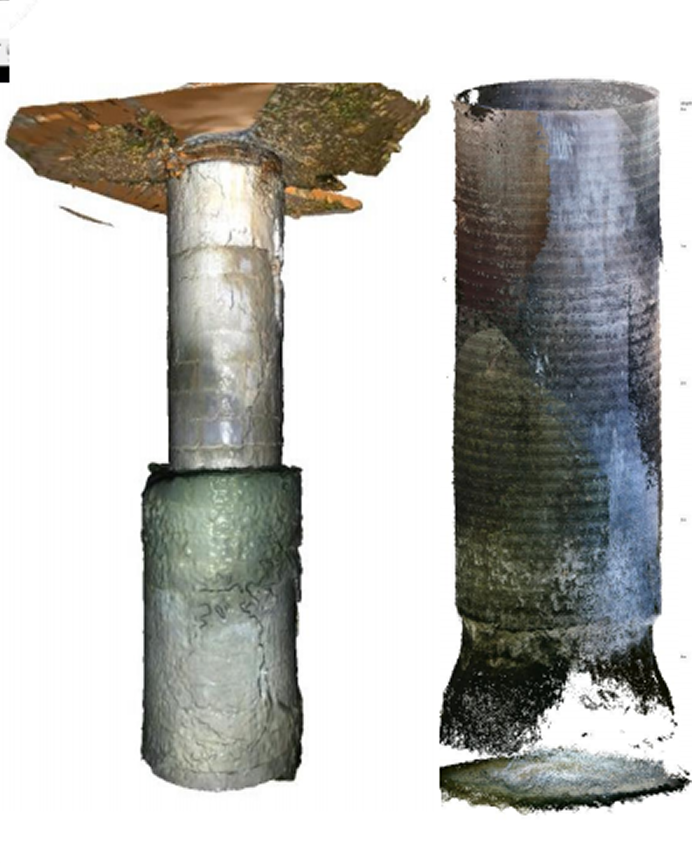

Point Cloud
Colorized spatial data shows captured geometry and supports measurement and inspection workflows.

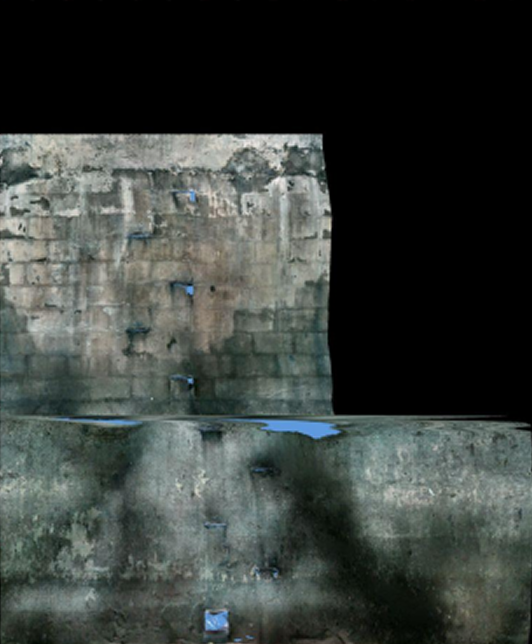

Unwrap Image
An unwrapped wall view helps reviewers examine and document surface conditions around the manhole.

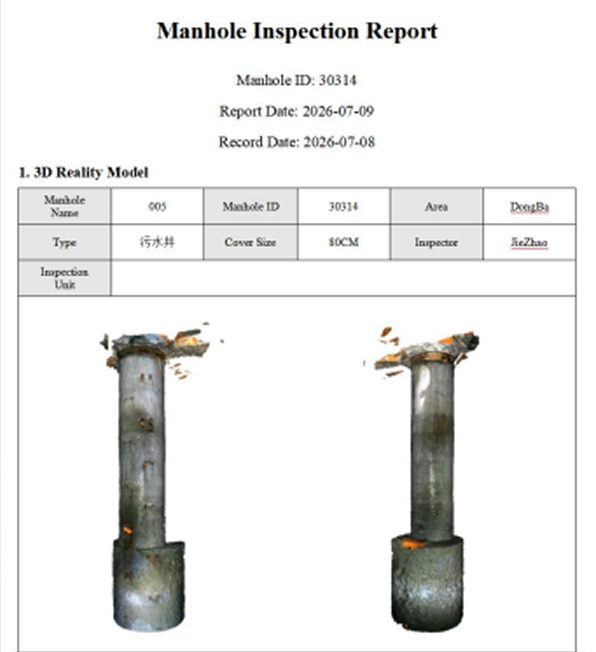

Defect Report
Organized inspection records can bring together captured imagery, model views, and reviewed findings. Confirm report fields and local requirements for your workflow.
Collection and processing
Monitor capture, reconstruct the interior, measure, and document.

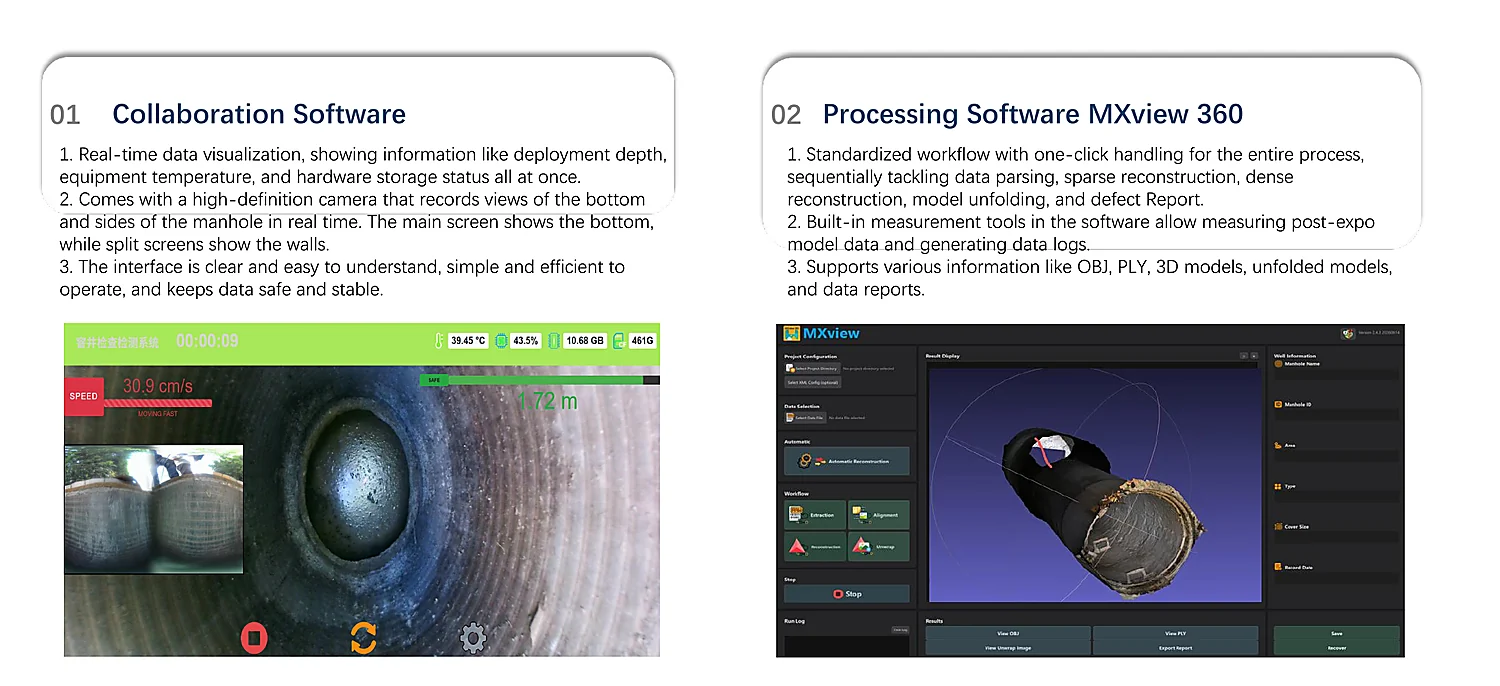

The collection interface presents operational status and camera views. MXview 360 supports parsing, reconstruction, model unfolding, measurement, and report generation.
Exact AI detection scope, GIS integration, connectivity options, and report configuration require current confirmation.
Applications
Designed for underground asset documentation.
✓Municipal drainage manholes
✓Utility and telecommunications manholes
✓Pipeline-network upgrade documentation
✓Smart-city underground asset surveys
✓Before-and-after retrofit records
✓Damage, deformation, leakage, blockage, and silt review where configured and validated
Verified specifications
MX-100 technical specifications
The battery-capacity values shown in the current brochure are internally inconsistent, so this website does not publish a settled capacity figure. Confirm the current battery configuration before procurement.
| Product type | Portable manhole 3D scanning and modeling system |
|---|---|
| Weight | 0.98 kg |
| Dimensions | 278 × 98 × 74 mm |
| Protection rating | IP64 |
| Housing | Aviation-grade aluminum and nylon plastic |
| Operating temperature | -10°C to 50°C |
| Power supply | Industrial rechargeable battery |
| Typical power consumption | 15 W |
| Data storage | CFexpress 128 GB standard; expandable to 1 TB |
| System storage | eMMC 32 GB |
| System memory | 8 GB |
| Camera system | Three 8 MP cameras optimized for low light |
| Lens field of view | Greater than 180° |
| Dynamic range | 110 dB+ with Clear HDR and DOL HDR |
| Video output | 2K-4K panoramic video stream |
| CPU | 8-core ARM; 4× Cortex-A76 + 4× Cortex-A55 |
| Operating system | Linux |
| Wireless | 2.4 GHz / 5 GHz Wi-Fi |
| Storage format | BAG / ROS bag, partially open-source |
| Processing | Post-processing |
Operating considerations
Ground-level operation
Designed to reduce routine manhole entry, not to eliminate all safety obligations.
Environmental limits
IP64 and -10°C to 50°C are listed; chemical exposure and site-specific limitations require evaluation.
AI-assisted review
Do not assume every defect will be detected or that review is fully autonomous.
Integration
Confirm standard versus optional connectivity, sensors, GIS, APIs, and software licensing.
