Livox Mid360
Cobra S
1.28 kg, a 360° × 59° field of view and 200,000 points per second. The catalog lists a 40 m range, corresponding to Livox’s 10% reflectivity sensor specification.
Evaluate Cobra S →Cobra S & Cobra X
Cobra SLAM LiDAR Scanners
Portable 3D capture with standard RTK and a choice of LiDAR sensors.
Combine LiDAR, multi-view cameras and IMU data to document indoor and outdoor environments. Preview coverage on the integrated display, then process colorized point clouds with MX-Fusion.
Choose your configuration

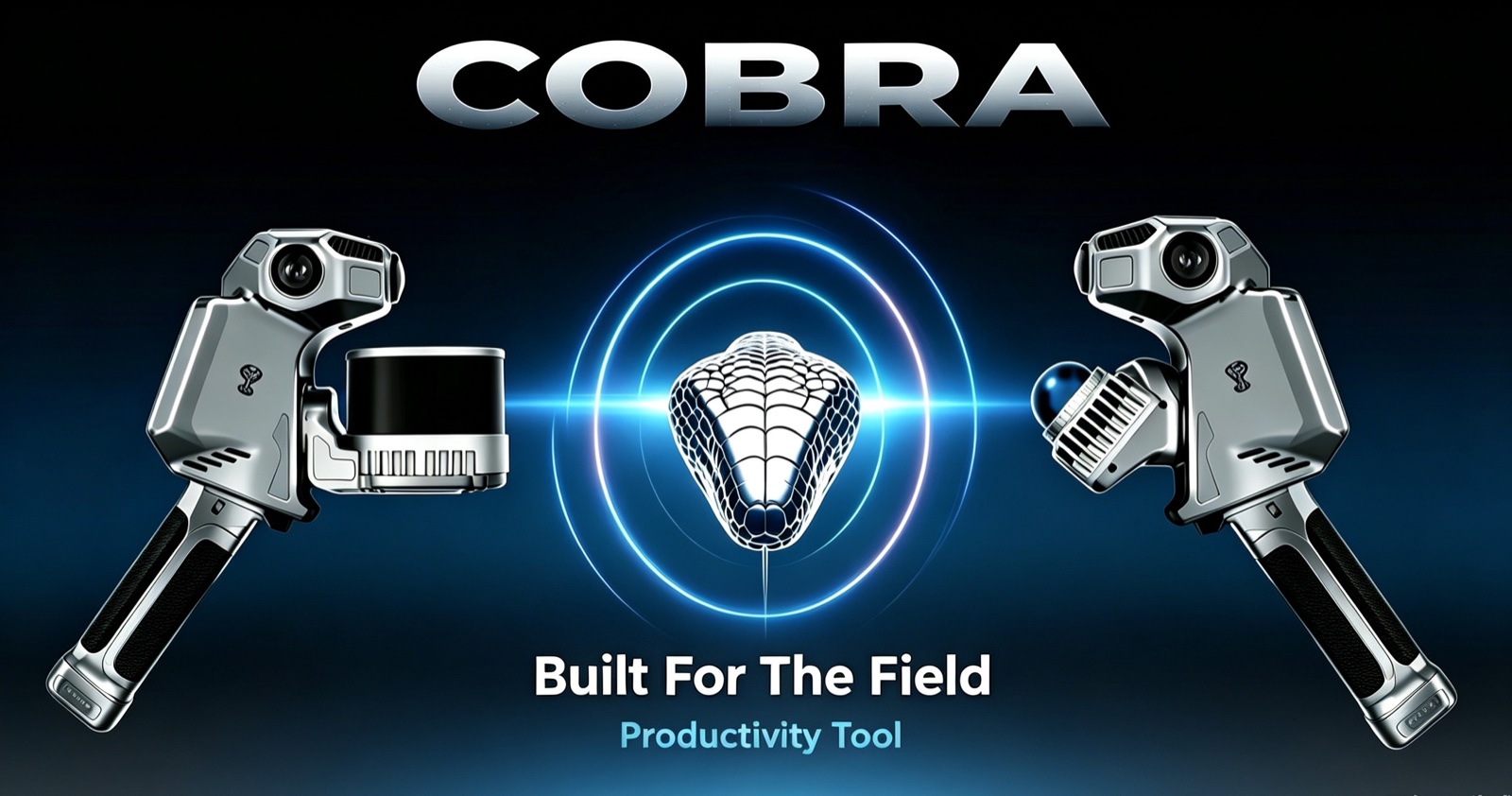

One platform. Two scanner versions.
Choose Cobra S for a lighter setup with a broad vertical field of view, or Cobra X for Hesai sensor configurations with higher point rates.
Hesai XT16 / XT32

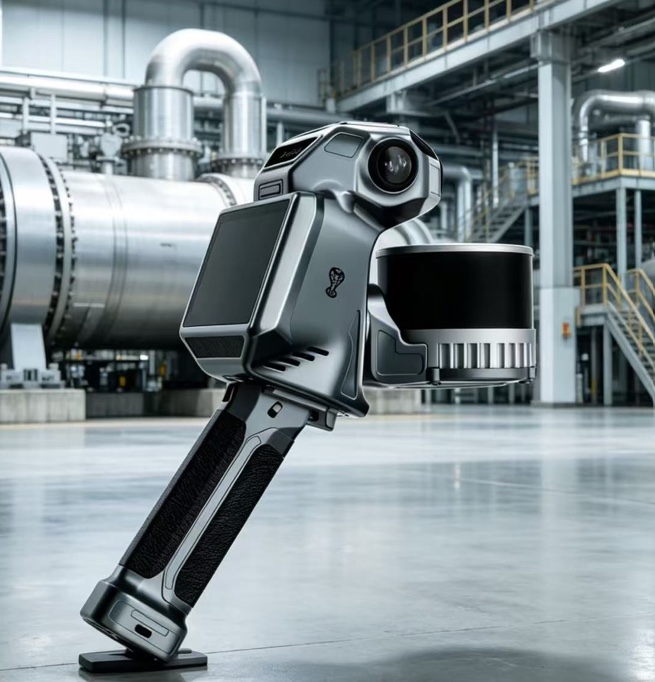

Cobra X
1.92 kg with 360° horizontal coverage. Choose XT16 at 320,000 points per second or XT32 at 640,000 points per second, with a standard sensor range of up to 120 m.
Evaluate Cobra X →Need a longer-range configuration? Discuss an XT32M module for Cobra X. Hesai lists XT32M at up to 300 m; final scanner configuration and performance must be confirmed when ordering.
Built for field capture
See coverage as you scan.
5-inch AMOLED display
Review point-cloud coverage and scan completeness on a 960 × 544 touchscreen.
Low-light cameras
Multi-view cameras provide 25.2 MP in total for texture capture in challenging lighting.
Standard RTK
RTK positioning joins LiDAR, IMU and camera data in the Cobra capture workflow.
Static and rotational scanning
Choose static, rotational or specified-angle scanning. The forward-facing LiDAR layout keeps the display within view.

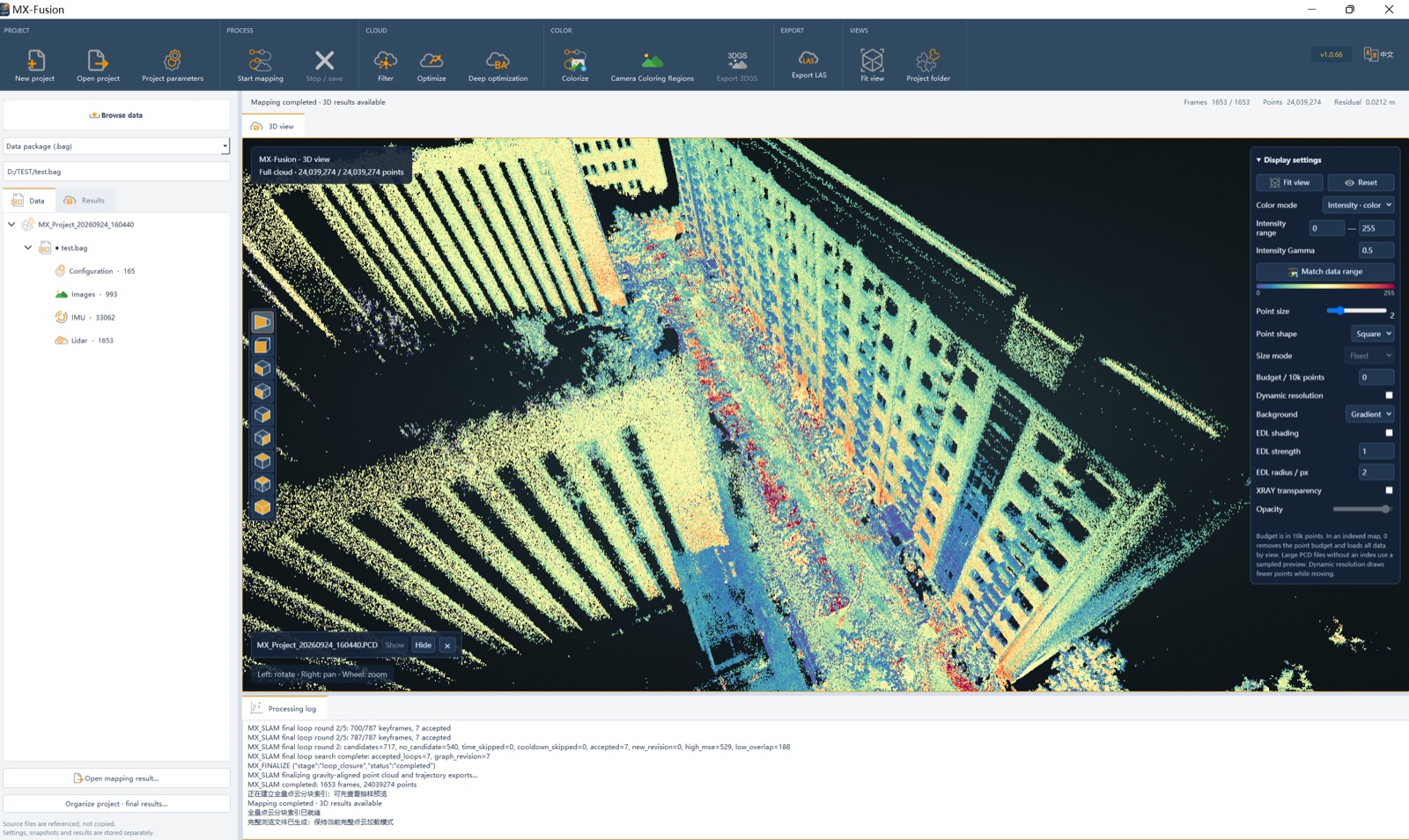

MX-Fusion processing
Turn field data into colorized point clouds.
MX-Fusion combines LiDAR, IMU, positioning and image data. Its processing workflow includes SLAM optimization, global alignment, outlier removal, registration and color balancing.
Export LAS, LAZ, E57 and PLY point clouds, with 3D Gaussian splatting output available through the supported software workflow.
Technical specifications
Cobra S and X comparison
| Specification | Cobra S | Cobra X / XT16 | Cobra X / XT32 |
|---|---|---|---|
| LiDAR sensor | Livox Mid360 | Hesai XT16 | Hesai XT32 |
| Field of view | 360° H × 59° V | 360° H × 30° V | 360° H × 31° V |
| Range | 40 m at 10% reflectivity* | Up to 120 m* | Up to 120 m* |
| Point rate | 200,000 pts/s | 320,000 pts/s | 640,000 pts/s |
| Weight | 1.28 kg | 1.92 kg | 1.92 kg |
| Dimensions | 350 × 133 × 180 mm | 350 × 133 × 192 mm | 350 × 133 × 192 mm |
| RTK positioning | Standard | Standard | Standard |
| Battery runtime | 100 minutes | 100 minutes | 100 minutes |
*Range depends on target reflectivity and capture conditions. Livox’s Mid360 specification lists 40 m at 10% reflectivity at 25°C, with effective range varying across the field of view. Hesai’s sensor specifications list XT16 and XT32 at up to 120 m; the 300 m value applies to XT32M. The XT32 vertical field of view above follows Hesai’s 31° specification.
Shared hardware
| Display | 5-inch AMOLED, 960 × 544, 5-point capacitive touchscreen |
|---|---|
| Processor | 8-core, 64-bit processor, up to 2.5 GHz |
| Camera pixels | 25.2 MP total |
| System storage | 64 GB eMMC |
| Removable storage | 512 GB CFexpress card |
| Battery and charging | 45.36 Wh, 14.4 V; USB-C 30 W charging |
| Operating temperature | −20°C to 50°C |
| Ingress protection | IP54 |
Runtime varies with operating conditions. Confirm the battery configuration used for quoted weight and any mounting accessories when selecting a system. Project accuracy should be evaluated using the intended capture and processing workflow.
Applications
Capture spaces your team needs to understand.
Cobra supports handheld capture, with backpack and vehicle mounting workflows available to discuss for your project.
- Surveying and mapping for indoor and outdoor environments.
- Construction documentation for BIM and existing-condition records.
- Digital twins built from colorized spatial data.
- Heritage documentation for archiving and restoration.
The catalog also describes mine and stockpile surveys, power infrastructure and forestry applications.
Product introduction
Meet the Cobra scanner.
Watch the Cobra release video, then explore the configurations and sample scan.
Product visuals introduce the Cobra hardware and scanner family. Technical specifications are available in the tables above.
More ModeXion product videos →Evaluate the data
Cobra downloads
Cobra S & X brochure
Explore the platform, configurations, MX-Fusion workflow and application examples.
Download PDF · 5.5 MBCobra S / Mid360 sample scan
Download the supplied LAS point cloud and review file details and coordinate notes before evaluation.
View sample data and downloadCobra questions
What is the difference between Cobra S and Cobra X?
Cobra S uses Livox Mid360 and weighs 1.28 kg. Cobra X uses a Hesai XT16 or XT32 configuration and weighs 1.92 kg. Compare their field of view, point rate and range in the specification table.
Is RTK standard?
Yes. RTK positioning is standard on Cobra S and Cobra X. Positioning results depend on the available corrections and field conditions.
Which formats does MX-Fusion export?
The Cobra catalog lists LAS, LAZ, E57 and PLY colored point clouds, plus 3D Gaussian splatting output through the supported software workflow.
Can I evaluate a sample before selecting a configuration?
Yes. Download the Cobra S Mid360 sample scan, or request a demonstration matched to your environment and deliverables.
Does standard Cobra X have a 300 m range?
The standard XT16 and XT32 sensors are specified by Hesai at up to 120 m. A 300 m sensor range applies to XT32M. Discuss the module and complete scanner configuration with ModeXion if you need that option.
Find the Cobra configuration for your project.
Share your environment, required outputs and capture workflow.
